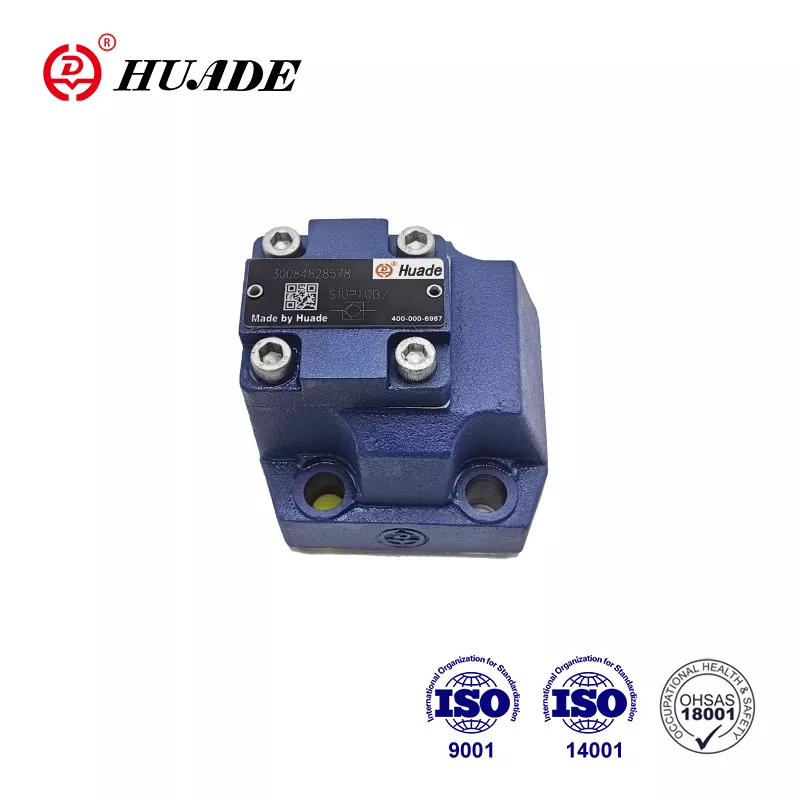

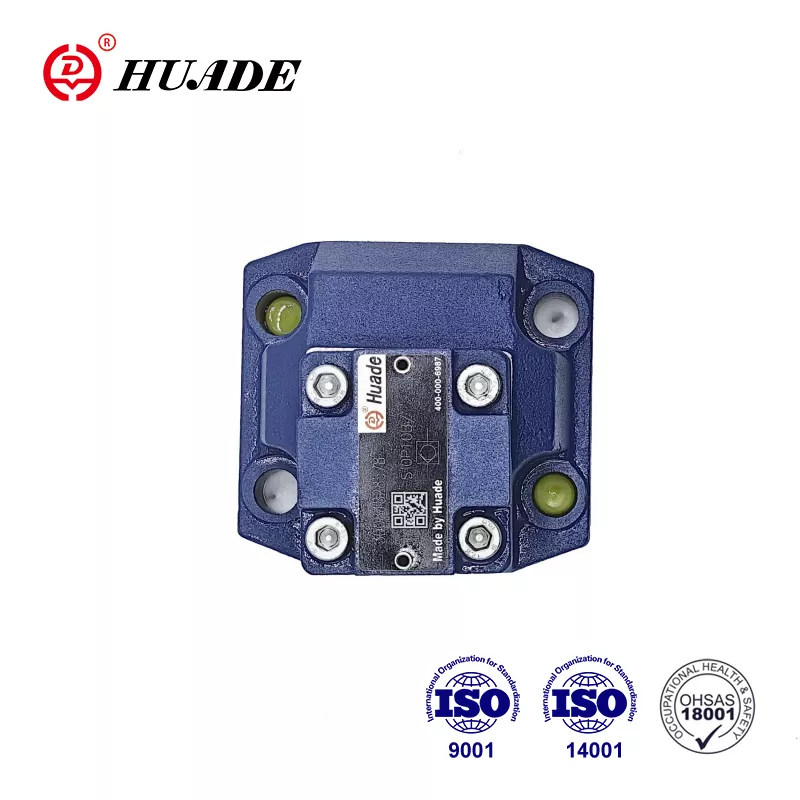

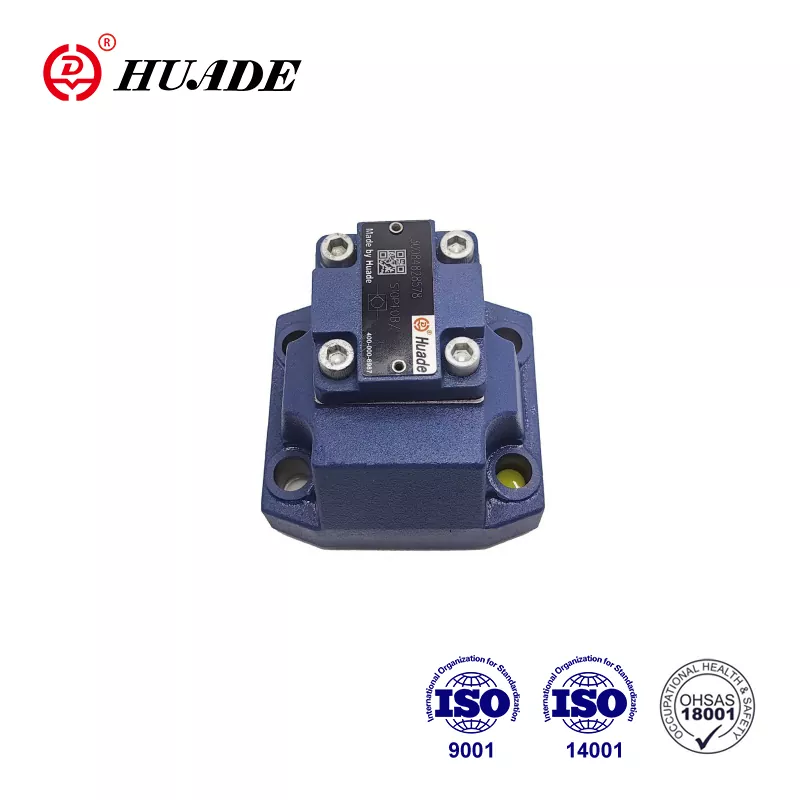

As China's leading manufacturer of hydraulic transmission and control technology, Huade® high-quality check valve S10P can completely replace hydraulic products under Rexroth Brand. This check valve S10P is widely applicable to various types of hydraulic devices. There are 3 sizes(size10, size 20, size30) of subplate mounting connection check valve S , which can be used in high pressure industrial environment. The factory has passed ISO9001,ISO14001, and ISO45001. Huade put great stress on the quality. It has a good inspection system in order to ensure that each product has stable performance. Huade ® is a well-know national brand in China.
|
Pressure fluid |
mineral oils or phosphate ester |
|
Pressure fluid temperature range（℃） |
-30～+80 |
|
Viscosity range (mm2/s) |
2.8~500 |
|
Max.operating pressure (Mpa) |
31.5 |
|
Cracking pressure (Mpa) |
See characteristic curves |
|
Maximum flow (L/min) |
up to 450L/min |
Features:
▶ For subplate mounting
▶ Leakage-free closure in one direction
▶ Various cracking pressure, optional
Application:
For industrial applications: The check valve S10P is mainly used at the outlet of the pump as a back pressure valve and bypass valve.
This Check Valve S10P has the task of, preferably closing a flow leak free in one direction and to permit free flow in the opposite direction. The stroke of the poppet, which is guided on its outside diameter, is limited by a mechanical stop. The built-in compression spring supports the closing movement. Furthermore the compression spring holds the poppet in the closed position even when there is no flow through the valve.
Symbol
Structure diagram
Subplate mounting
